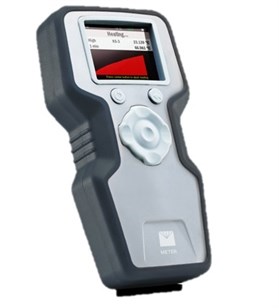

KD2 Pro Thermal Properties Analyser

The KD2-Pro is a fully portable field and lab thermal properties analyser. It uses the transient line heat source method to measure thermal diffusivity, specific heat (heat capacity), thermal conductivity, and thermal resistivity. Sophisticated data analysis is based on 30+ years of research experience on heat and mass transfer in soils and other porous materials. Complies with ASTM, IEEE, SSSA Standards.

The KD2 Pro uses 3 sensors to measure thermal diffusivity, specific heat, conductivity and resistivity. The KD2 Pro allows unattended (user programmable) measurements and on-board data storage with space for over 4,000 measurements.

Corrects for Temperature Drift

Temperature changes of a thousandth of a degree per second (the sun warming the soil, for example, or someone walking into the lab) destroy the accuracy of thermal properties calculations. Unlike other thermal needle systems, the KD2 Pro corrects for linear temperature drift that can account for large errors.

Excellent Accuracy

The compact KD2 Pro controller is much more than a simple readout for time and temperature. A proprietary algorithm fits time and temperature data with exponential integral functions using a nonlinear least squares method. This full mathematical solution delivers thermal resistivity to within ±10%.

Complies with ASTM, IEEE, SSSA Standards

For more information, see this application note.

Specifications
Accuracy ±5 to ±10% Thermal Conductivity/Resistivity
±10% Specific Heat
±10% Thermal Diffusivity
Measurement Speed 1, 2, 5, & 10 min. read times (see user's manual for more information)
Data Storage 4,095 readings, flash memory
Compliance to Standards IEEE Standard 442-1981 and ASTM Standard D5334-08
Operating Environment of Sensors -50 to 150°C
Battery Source 4 x AA
Auto-Read Mode Users can collect unattended data at user-defined intervals in the auto-read mode
Type Ultra low-power 16-bit microcontroller w/ 24-bit A/D converter
Display Liquid Crystal Display (LCD) 7.5 cm x 4 cm
Case Dimensions 15.5 x 9.5 x 3.5 cm
Included Accessories KS-1 Thermal Conductivity/Resistivity sensor (for liquids)
TR-1 Thermal Conductivity/Resistivity sensor (for solids)
SH-1 Dual-needle Thermal Properties sensor
User's manual
Pelican carrying case
Readout stand
Performance verification standards
Thermal grease
Drill bit for drilling pilot holes in materials
Concrete pilot pin
KD2 Pro download utility
RS232 cable
Calibration Each KD2 Pro comes factory calibrated and includes performance verification standards
Range of Measurements K: 0.02 to 4 Wm-1 C-1
D: 0.1 to 1.0 mm2s-1
R: 0.25 to 50mC W-1
C: 0.5 to 4 MJ m-3 C-1
* Accuracy and measurement range vary with sensor type. See Sensor(s) Information.
