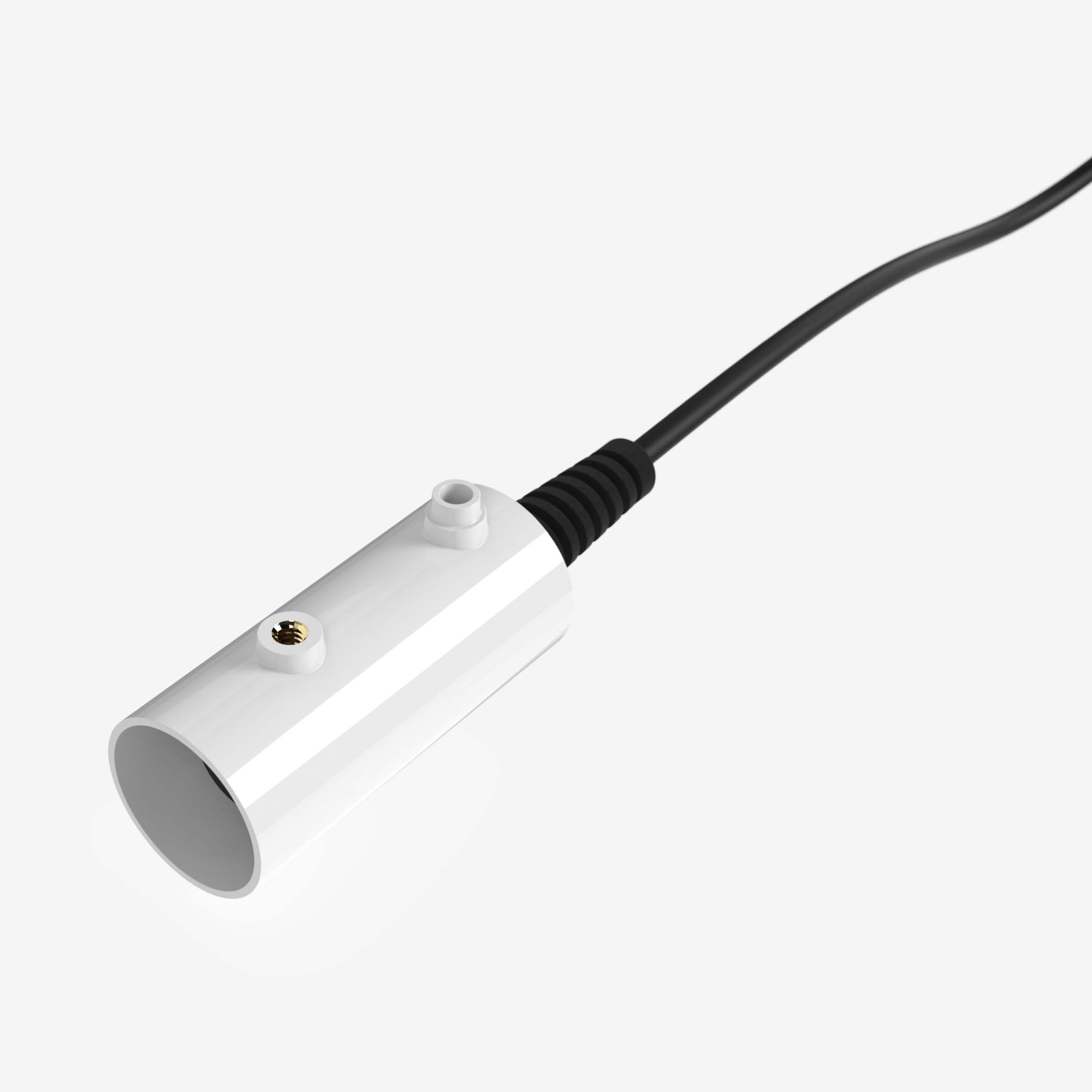

Infrared Thermometer (IRT)

The infrared thermometer monitors surface temperature by measuring the thermal energy radiated from any surface within its field of view.

Highly Accurate, Meticulously Calibrated

Has an accuracy of ± 0.2°C when the target temperature is within 20°C of the sensor body temperature.  The IR Thermometer is calibrated from -30 to 65°C.

Non-Contact, Continuous Monitoring

Delivers a continuous stream of temperature data from the entire field of view, not just data from a single leaf.

Purpose Built for Plant Science Applications

Not a generic IR thermometer, but a scientific-grade sensor designed for making canopy measurements. It comes with a highly accurate factory calibration. A radiation shield and mounting bracket are also included.

Four Field of View Options

Select the right field of view for your application. Choose a circular aperture with a half angles of 14, 18 or 22 degrees. Alternatively pick a horizontal aperture with 13 degree vertical half angle and 32 degree horizontal half angle.

Corrects for Sensor Temperature

Measures both the target temperature and the temperature of the sensor itself to correct for the temperature sensitivity of the detector.

Rugged, Lightweight and Weatherproof

Tough germanium window makes the sensor durable without decreasing its accuracy. A weatherproof aluminum body withstands harsh weather conditions.

Monitor Temperature from your Mobile Device

Compatible with our simple, low-power Em50 series data loggers. Download data in your office or anywhere with an internet connection when used with the ZL6 Data-logger wireless logger. Plug and play, no programming required.

Specifications
Measurement range: -30 to 65 °C
Accuracy: +/- 0.2°C when sensor body is within 20°C of target temperature
Field of view options
Circular aperture: 14°, 18 or 22° half angle
Horizontal aperture: 13° vertical and 32° horizontal half angle
Data logging options: METER: ZL6 & ProCheck
Other: Any data acquisition system capable of 3.6-15V excitation and serial or SDI-12 communication
Dimensions: 2.3 cm diameter 6.0 cm length
Cable: 5 metres, with stereo mini plug

We periodically send an email newsletter containing updates, new product releases, training and advice. If you would like to receive these please subscribe below.

Join

Labcell Limited exclusively supply and support METER products in the UK & Ireland.

Non UK/Ireland Customers, please contact METER Environment at:www.metergroup.com/environment/

Applications

  • Stomatal Conductance: Monitor water use in real time by using a biophysical model to back-calculate stomatal conductance.
  • Plant Water Stress.
  • Evapotranspiration: Use temperature to estimate stomatal conductance instead of using a crop coefficient.
  • Calculate true Vapour Pressure Deficit (VPD): Reduce errors when modeling by using actual canopy temperature instead of air temperature.
