dashCAN

Remote Lambda and NOx CAN Display

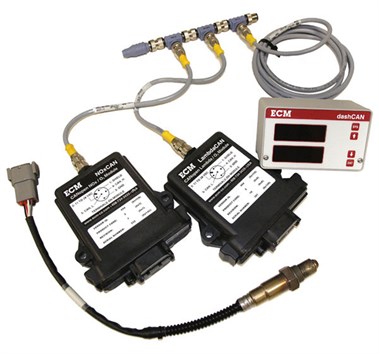

ECM's dashCAN is a small, two-channel remote display for LambdaCAN, NOxCAN, and baroCAN CAN networks. Simply attach dashCAN to the CAN bus and any two parameters from the network can be displayed.

Perfect for dashboard use, dashCAN uses tall (13mm), 15-segment LED digits for easy viewing at all cabin temperatures and lighting conditions.

The LambdaCAN, NOxCAN, and baroCAN module, parameter, display update rate and LED intensity are programmable via buttons on the dashCAN. 2m shielded CAN cabling with integral power (8-28VDC) and removable back panel make mounting easy.

dashCAN layout

Multiple dashCANs can be attached to the CAN bus. ECM's dashCAN is a superb addition to your ECM LambdaCAN, NOxCAN and baroCAN network.

We periodically send an email newsletter containing updates, new product releases, training and advice. If you would like to receive these please subscribe below.

DashCAN Specifications:

Operates with NOxCAN, LambdaCAN and baroCAN modules
2-Channel
Fully Programmable
Readable when Cold (LEDs)
8 to 28 VDC, 100mA at 12VDC
-40 to +105°C
105 mm x 63 mm x 63mm
300 gm
2m Integral Cable (Extendable)

DashCAN Leaflet
Size: 189.1 KB (193,629 bytes)

Labcell Automotive Instrumentation Brochure
Size: 858.0 KB (878,610 bytes)

Quotation Request

Email us to request a quotation for the dashCAN
